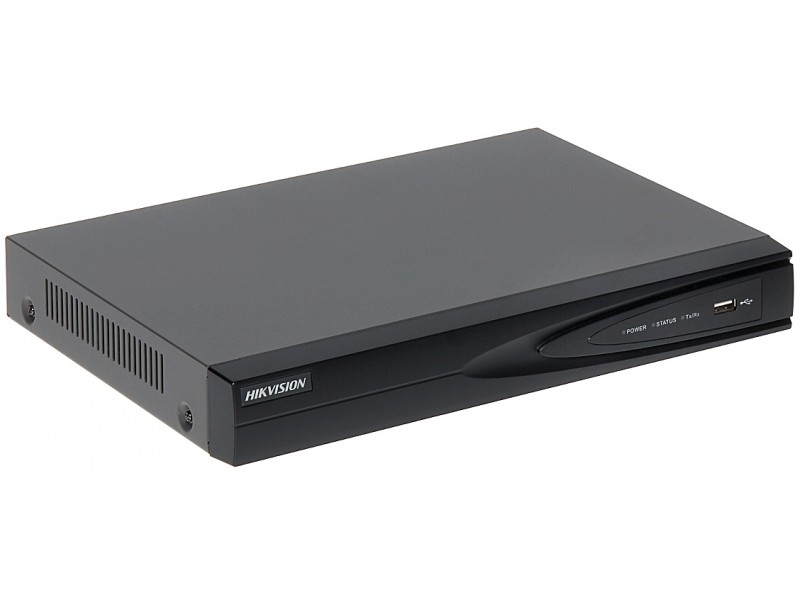

Hikvision DS-7616NI-K1

Hikvision DS-7616NI-K1

.
  • Количество IP каналов16 каналов
  • Поддержка HDD1 HDD
  • Decoding
  • Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16-ch
  • Hard Disk
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1kΩ)
  • SATA1 SATA interface for 1HDD
  • CapacityUp to 6TB capacity for each disk
  • External Interface
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • USB Interface2 × USB 2.0
  • Video/ Audio Input
  • IP Video Input16-ch
  • Incoming/Outgoing Bandwidth160 Mbps /80 Mbps
  • General
  • Power Supply12 VDC
  • Consumption (Without HDD)≤ 10 W
  • Working Temperature-10 to +55° C (14 to 131° F)
  • Working Humidity10 to 90 %
  • Dimensions (W × D × H)315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  • Weight (Without Hard Disk)≤ 1 kg (2.2 lb)
  • Chassis1 U
  • Video/ Audio Output
  • VAG/HDMO OutputHDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzVGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Network Management
  • Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
