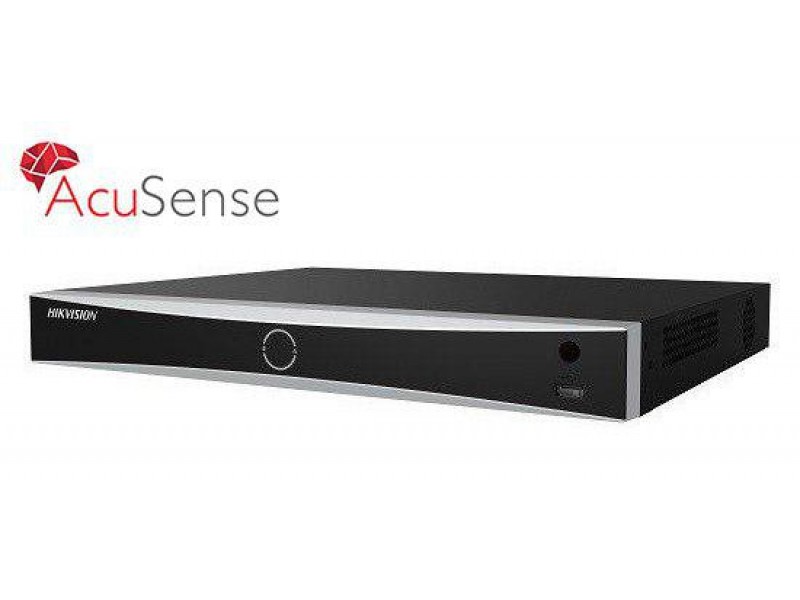

Hikvision DS-7616NXI-I2/4S

Video/Audio Input

Two-way audio input:

1-ch, RCA (2.0 Vp-p, 1kΩ)

IP video input:

16-ch

Network

Incoming bandwidth:

160Mbps

Outgoing bandwidth:

256Mbps

Video/Audio Output

HDMI/VGA output:

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. 4K resolution is only available for HDMI.

CVBS Output:

1-ch, BNC(1.0Vp-p, 75Ω)
Resolution: 704×576(PAL); 704×480(NTSC)

Synchronous Playback:

16-ch

Decoding

Capability:

12-ch @ 1080p

Live view / Playback:

12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk

SATA:

2 SATA interfaces

Capacity:

Up to 8TB capacity for each HDD

External Interface

Network Interface:

1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface

USB Interface:

Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0

Alarm In:

4-ch

Alarm Out:

1-ch

General

Power Supply:

12 VDC

Power:

≤ 40 W

Consumption(without hard disk and POE):

≤ 15 W

Working Temperature:

-10 oC ~ +55 oC (+14 oF~ + 131 oF)

Working Humidity:

10 % ~ 90 %

Chassis:

1U chassis

Dimensions:

380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0")

Weight(without HDD):

≤ 3 kg (6.6 lb)
