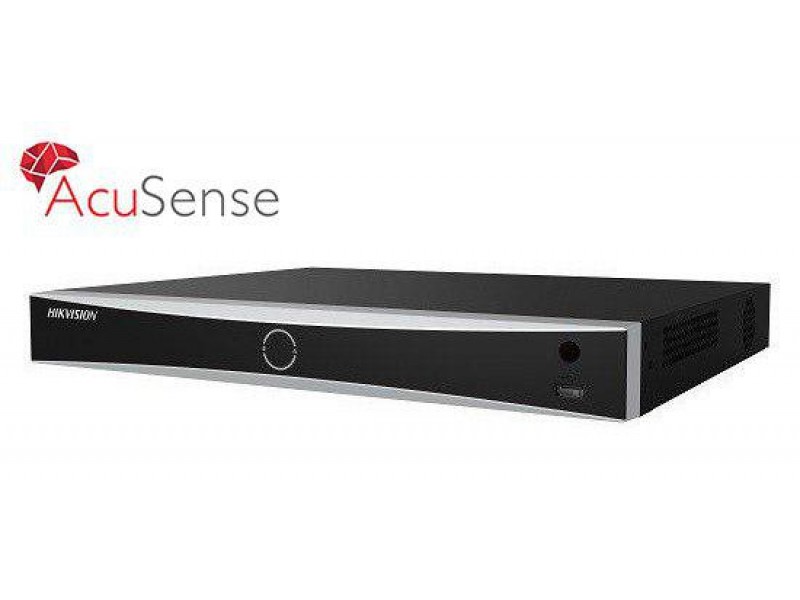

Hikvision DS-7608NXI-I2/4S

Hikvision DS-7608NXI-I2/4S

.
  • Количество IP каналов8 каналов
  • Bitrate80
  • Поддержка HDD2 HDD
  • СетьLAN 1Gb\s
  • USB 3.01

Video/Audio Input

Two-way audio input:



1-ch, RCA (2.0 Vp-p, 1kΩ)

IP video input:



8-ch

Network

Incoming bandwidth:



80Mbps

Outgoing bandwidth:



256Mbps



Video/Audio Output

HDMI/VGA output:



4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. 4K resolution is only available for HDMI.

CVBS Output:



1-ch, BNC(1.0Vp-p, 75Ω)
Resolution: 704×576(PAL); 704×480(NTSC)

Recording Resolution:



12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback:



8-ch

VGA Output:



1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz

Decoding

Capability:



12-ch @ 1080p



Hard Disk

SATA:



2 SATA interfaces

Capacity:



Up to 8TB capacity for each HDD

External Interface

Network Interface:



1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface

USB Interface:



Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0

Alarm In:



4-ch

Alarm Out:



1-ch



General

Power Supply:



12 VDC

Power:



≤ 40 W

Consumption(without hard disk and POE):



≤ 15 W

Working Temperature:



-10 oC ~ +55 oC (+14 oF~ + 131 oF)

Working Humidity:



10 % ~ 90 %

Chassis:



1U chassis

Dimensions:



380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0")

Weight(without HDD):



≤ 3 kg (6.6 lb)
