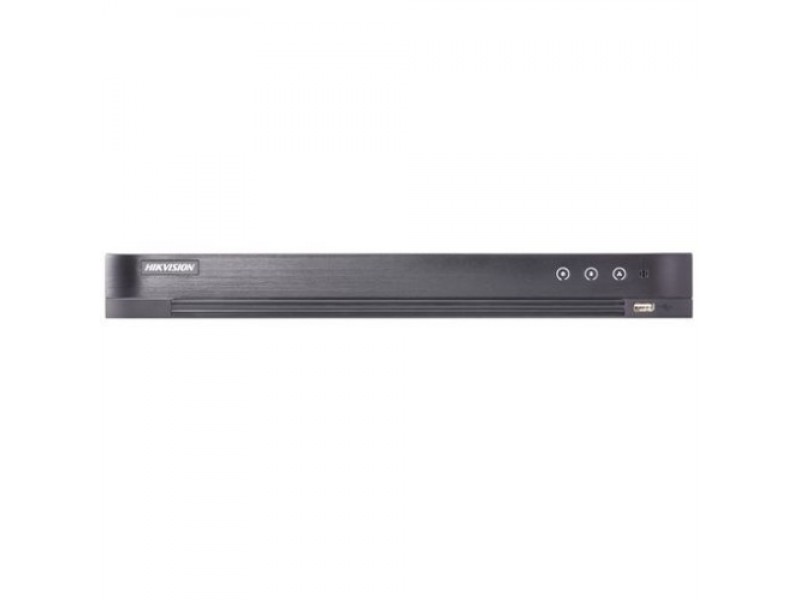

Hikvision iDS-7204HUHI-M1/4S

Name: VideoSecurity- видеонаблюдение, камеры видеонаблюдения, скрытая камера в Кишиневе!
Address: Кишинев, Молдова
Telephone: (079)876 000

Кол-во видеоканалов4
Кол-во аудио каналов1
Кол-во fps на запись 1080p12 fps
Поддержка HDD1 HDD

Recording
Encoding ResolutionMain stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bit Rate32 Kbps to 10 Mbps
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual StreamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bit Rate64 Kbps

Video And Audio
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output1-ch, RCA (Linear, 1 KΩ)
Synchronous Playback4-ch
IP Video Input4-ch (up to 8-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 8 MP signal input is only available for channel 1.
HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS InputPAL/NTSC
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog Video Input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA OutputHDMI: 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output

Network
Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connections32
Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface
CapacityUp to 10 TB capacity for each disk
Serial InterfaceRS-485 (half-duplex)
USB Interface1 × USB 2.0； 1 × USB 3.0
Alarm In/OutN/A
SATA1 SATA interface

General
Consumption(Without HDD)≤ 10 W
Working Humidity10% to 90%
Power Supply12 VDC
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weights (Without HDD)≤ 1.16 kg (2.6 lb)
