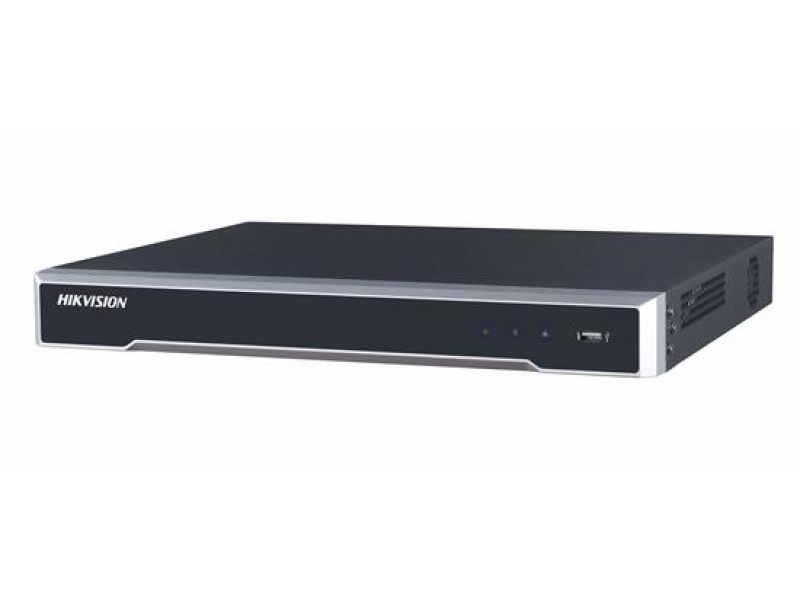

Hikvision DS-7608NI-K2/8P

.

Количество IP каналов8 каналов
Bitrate80
Поддержка HDD2 HDD
Встроенный свитч8 портов PoE

Video And Audio
Incoming/Outgoing Bandwidth80 Mbps ,160 Mbps
IP Video Input8-ch

Decoding
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
Synchronous Playback8-ch
Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

POE Interface
Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 120 W
Supported StandardIEEE 802.3 af/at

Hard Disk
SATA2 SATA interfaces
CapacityUp to 6 TB capacity for each HDD

External Interface
Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1kΩ)
Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out4/1

General
Power Supply100 to 240 VAC,≤ 180 W
Consumption (Without HDD)≤ 15 W (without enabling PoE)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10 to 90 %
Dimensions (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight (Without Hard Disk)≤ 3 kg (6.6 lb)

Video/Audio Output
VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output1-ch, RCA (Linear, 1 KΩ)

Network Management
Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
