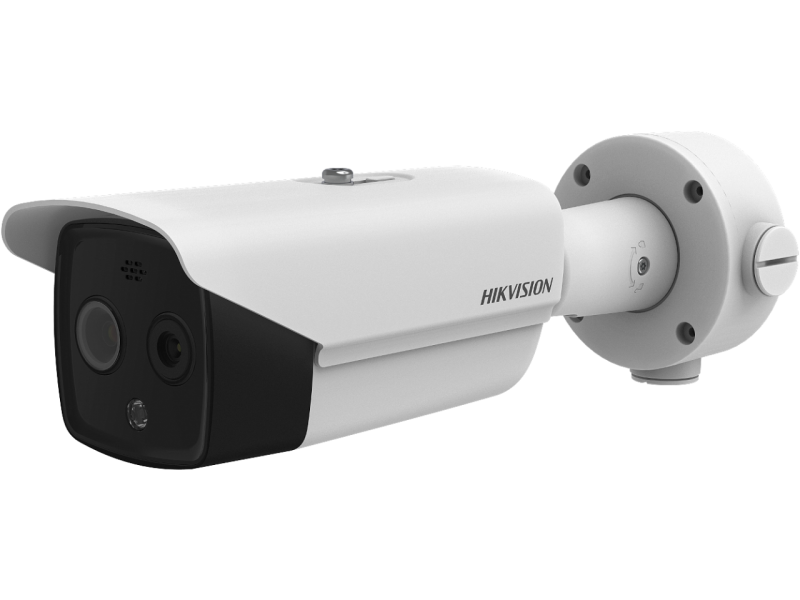

Hikvision DS-2TD2617B-3/PA

Hikvision DS-2TD2617B-3/PA

.
  • Resolution4,0Mpx (2560*1520)
  • FormBullet-камера
  • ИсполнениеВнутреннее
  • Lens4 мм
  • Подсветка40 м
  • PoEDa
  • SD-cardDa
  • Wi-FiNone
  • Тревожный вход/выход2/2
  • Thermal
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution160 × 120
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 40 mK (@25°C,F#=1.1)
  • Focal Length3.1mm
  • IFOV5.48 mrad
  • ApertureF1.1
  • Field Of View50° × 37.2° (H × V)
  • Min. Focusing Distance0.2 m
  • Optical
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Resolution2688×1520, 4MP
  • Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
  • Field Of View84° × 44.8°(H × V)
  • Focal Length4mm
  • Shutter Speed1s to 1/100,000s
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & Night ModeIR cut filter with auto switch
  • WDR120 dB
  • Image Effect
  • Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
  • Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
  • Illuminator
  • IR DistanceUp to 40 m
  • IR Intensity And AngleAutomatically adjusted
  • Smart Function
  • Temperature RangeFrom 30°C to 45°C (86°F ~ 113°F)
  • Temperature Accuracy± 0.5 °C
  • Video And Audio
  • Main StreamThermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
  • Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
  • Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
  • SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
  • Simultaneous Live ViewUp to 20
  • Interface
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
  • Alarm Input2-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio OutputLinear Level; Impedance: 600Ω
  • Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
  • On-Board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
  • General
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
  • Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
  • Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
  • Weight1.76 kg (3.88 lb)
