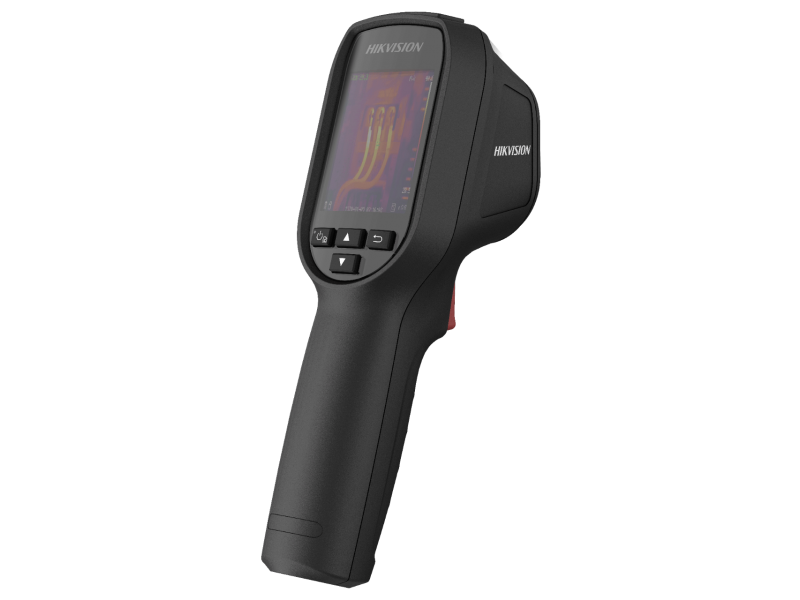

DS-2TP31-3AUF

Name: VideoSecurity- видеонаблюдение, камеры видеонаблюдения, скрытая камера в Кишиневе!
Address: Кишинев, Молдова
Telephone: (079)876 000

Thermal Module
Image SensorUncooled Focal Plane Arrays
Max. Resolution160 × 120
NETD< 40mk (@ 25 °C,F#=1.0)
Field Of View37.2° × 50 °
ApertureF 1.1
Pixel Pitch17μm
Focal Length3.1 mm
IFOV (Mrad)5.48 mrad
Response Waveband8μm to 14μm

Image Display
Monitor320 × 240 resolution 2.4’ LCD display
PalettesBlack hot, White hot, Rainbow, Ironbow

Thermography
Rules3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature
Thermometry Range-20 °C to 550 °C (-4 °F to 1022 °F)
Thermometry AccuracyMax (±2 °C, ±2%)

Battery
Battery TypeRechargeable Lithium Battery
Battery Operating Time8 hours continuous running

Functions
Laser LightSupport (Point to the thermography target)
StorageReplaceable memory card (default 8G, support up to 128G storage)
PhotoThermal image
VideoN/A
LanguageEnglish

General
Power3.7 V DC/0.4 A
Power ConsumptionLess than 1.2 W
WeightApprox. less than 350 g (0.77 lb)
Hardware Interfacemicro USB
Protection LevelIP54
Drop Test Height2 m (6.56 feet)
Dimension196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)
AccessoryPower Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap
Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
