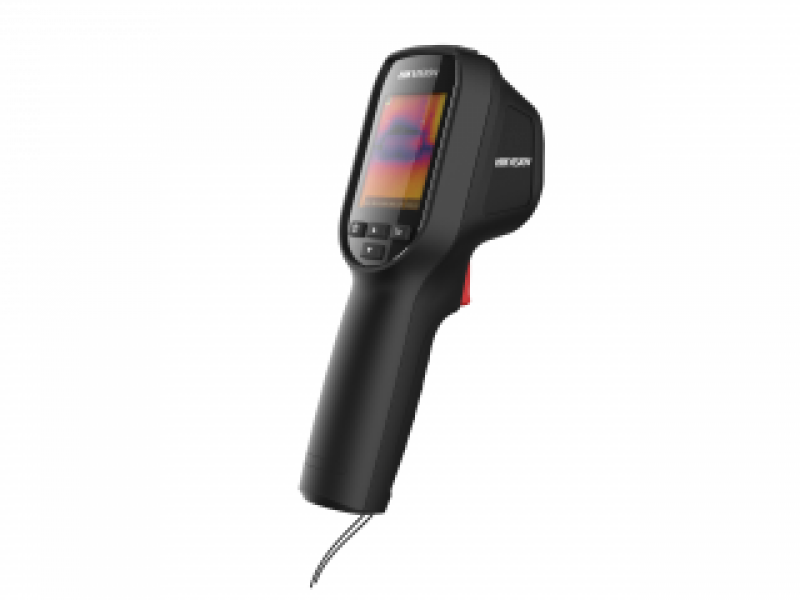

DS-2TP21B-6AVF/W

Name: VideoSecurity- видеонаблюдение, камеры видеонаблюдения, скрытая камера в Кишиневе!
Address: Кишинев, Молдова
Telephone: (079)876 000

Thermal
Image SensorVOx Uncooled Focal Plane Arrays
Resolution160×120
Pixel Interval17μm
Response Waveband8μm to 14μm
NETDLess than 40 mK (@25°C,F#=1.1)
Focal Length6.2mm
Focus ModeManual
Field Of View25° × 18.7°
IFOV2.74 mrad
Image Frequency25 hz
ApertureF 1.1

Optical
Picture ResolutionConfigurable: 2 MP, 5 MP, 8 MP
Video Resolution640 × 480

Thermography
RulesMax. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography
Thermographic RangeFrom 30 °C to 45 °C
Accuracy± 0.5 °C (Without Black Body);± 0.3 °C (With Black Body)

Image Display
Monitor640 × 480 resolution 3.5-inch LCD touch display
Image ModeThermal view, B/W optical view, image fusion view are selectable
PalettesBlack hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
Image FusionFusion view of thermal view and overlaid details of the optical channel
Digital ZoomThermal：1×, 2×, 4×

System Function
CaptureThermal/Optical/Fusion image
VideoThermal/Optical/Fusion image
Text CommentYes
Voice CommentYes
Wi-FiYes
StorageReplaceable memory card (default 16G, support up to 128G storage)
ClientiVMS-4200 (PC);Hik-Thermal (Mobile APP)
Battery TypeDismountable and rechargeable Li-ion Battery
Battery Operating Time5 hours in 25℃, with Wi-Fi and Bluetooth off. 4 hours in 25℃, with Wi-Fi and Bluetooth on.

General
Hardware InterfaceType-C USB
Power Supply5 VDC/2 A
Power ConsumptionMax. 4.5 W
Working Temperature10°C to 35 °C
Protection LevelIP54
Drop Test Height2 m (6.56 feet)
WeightWith Battery: 653 g (1.44 lb) Without Battery: 511 g (1.13 lb)
Dimension244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)
