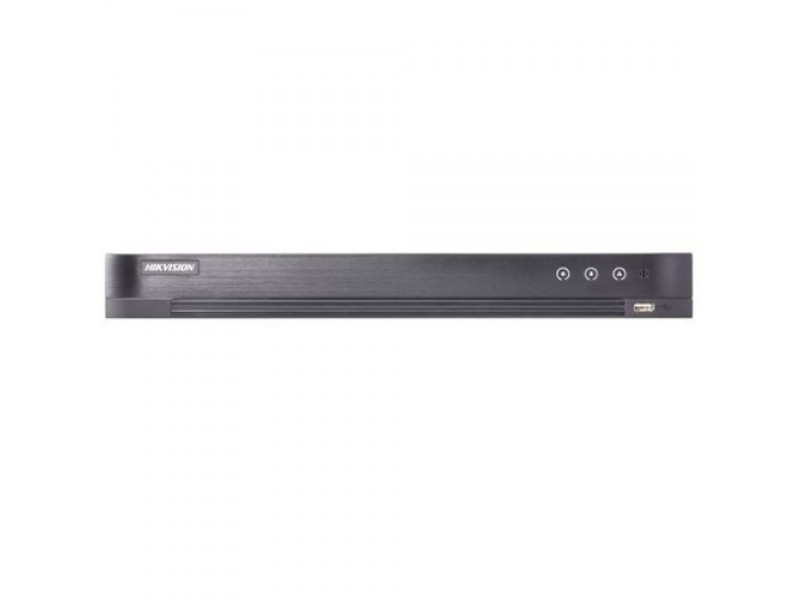

Hikvision iDS-7204HUHI-K1/4S

Hikvision iDS-7204HUHI-K1/4S

.
  • Кол-во видеоканалов4
  • Кол-во аудио каналов4
  • Кол-во fps на запись 1080p12 fps
  • Поддержка HDD1 HDD
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionMain stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Video Bit Rate32 Kbps to 10 Mbps
  • Dual StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bit Rate64 Kbps
  • Video And Audio
  • IP Video Input4-ch (up to 12-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS InputPAL/NTSC
  • HDMI/VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
  • Synchronous Playback32
  • HDTVI Input5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Network
  • Remote Connections32
  • Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/Out4/1
  • USB Interface2 × USB 2.0
  • Serial InterfaceRS-485 (half-duplex)
  • General
  • Power Supply12 VDC
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Weights (Without HDD)≤ 1.16 kg (2.6 lb)
  • Consumption(Without HDD)≤ 10 W
  • Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
