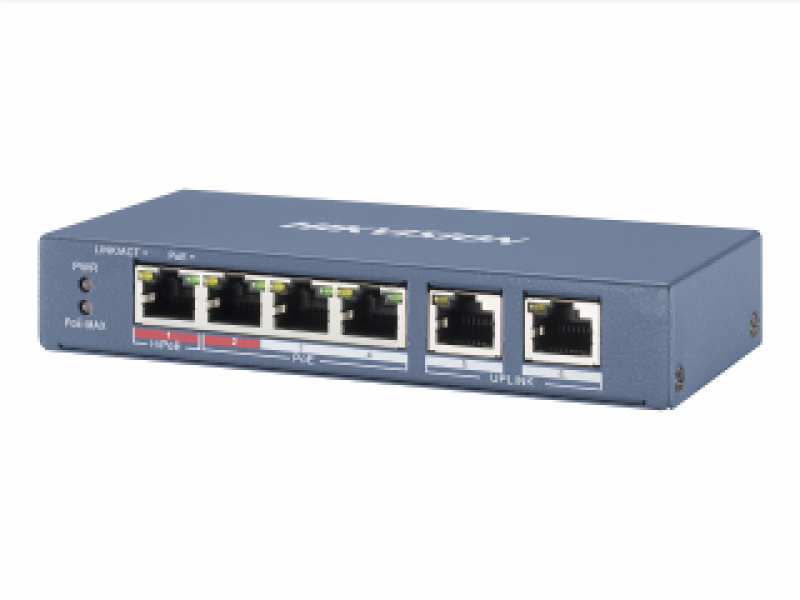

Hikvision DS-3E0106HP-E

Name: VideoSecurity- видеонаблюдение, камеры видеонаблюдения, скрытая камера в Кишиневе!
Address: Кишинев, Молдова
Telephone: (079)876 000

Network Parameters
Port Number1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports
Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding ModeStore-and-forward switching
Working ModeStandard mode (default); Extend mode
High Priority PortsPorts 1 to 2
Ports For Long-Distance TransmissionPorts 1 to 4
MAC Address Table2 K
Switching Capacity1.2 Gbps
Packet Forwarding Rate0.893 Mpps
Internal Cache768 Kbits

PoE Power Supply
PoE StandardPort 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE Power PinSupport 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE PortPorts 1 to 4
Max. Port PowerPort 1: 60 W Ports 2 to 4: 30 W
PoE Power Pudget60 W
Max. Power Consumption65 W

General
ShellMetal material, fan-free design
Gross Weight0.77 kg (1.70 lb)
Net Weight0.24 kg (0.53 lb)
Dimension (L × H × D)145 mm × 25.6 mm × 68.45 mm (5.7” × 1.0” × 2.7”)
Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Storage Humidity5% to 95% (no condensation)
Power Supply48 VDC, 1.35 A
Power Consumption In Idle5 W

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
