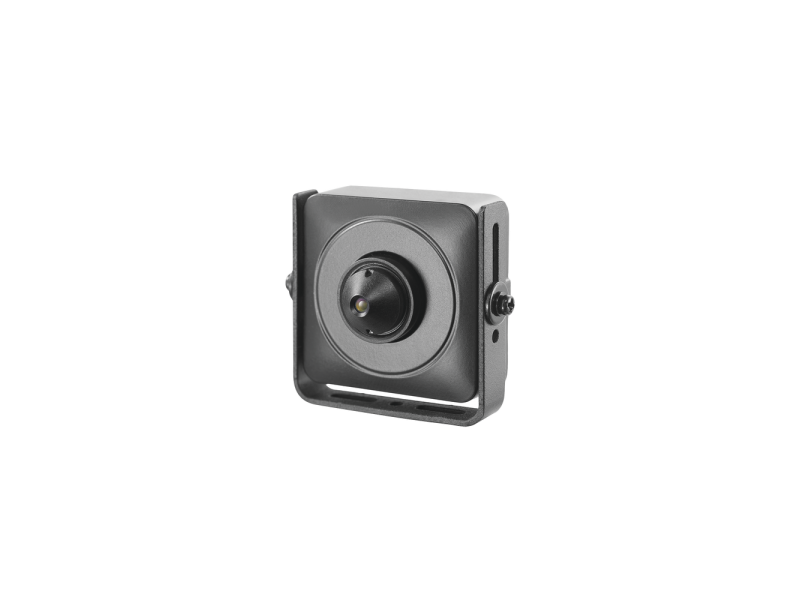

Hikvision DS-2CS54D8T-PH

Hikvision DS-2CS54D8T-PH

.
  • Форм-факторМини камера
  • Разрешение2,0Mpx(1920×1080)
  • Объектив3,6 мм
  • True day/nightДа
  • Camera
  • Lens3.7 mm fixed focal lens
  • Horizontal Field Of View71.4°
  • Lens MountM12
  • Day & NightElectronic
  • SynchronizationInternal Synchronization
  • WDR (Wide Dynamic Range)> 120 dB
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Signal SystemPAL/NTSC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Resolution1920 (H) × 1080 (V)
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Menu
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceATW/MANUAL
  • Privacy MaskON/OFF, 4 programmable privacy masks
  • Motion Detection4 programmable motion areas
  • Backlight CompensationWDR/BLC/WDR
  • 3D DNR (Digital Noise Reduction)Level 1 to 10
  • LanguageEnglish, Chinese
  • FunctionsContrast, Brightness, Sharpness, Mirror
  • Interface
  • Video Output1 HD analog output/1 CVBS output (75Ω/BNC) * The adapter is required only when extending the cable.
  • General
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Power Supply12 VDC ±20%
  • Power ConsumptionMax. 1.5 W
  • MaterialMetal
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • Dimensions32.4 mm × 32.4 mm × 22.0 mm (1.28" × 1.28" × 0.87")
  • WeightApprox. 200 g (0.44 lb.)
