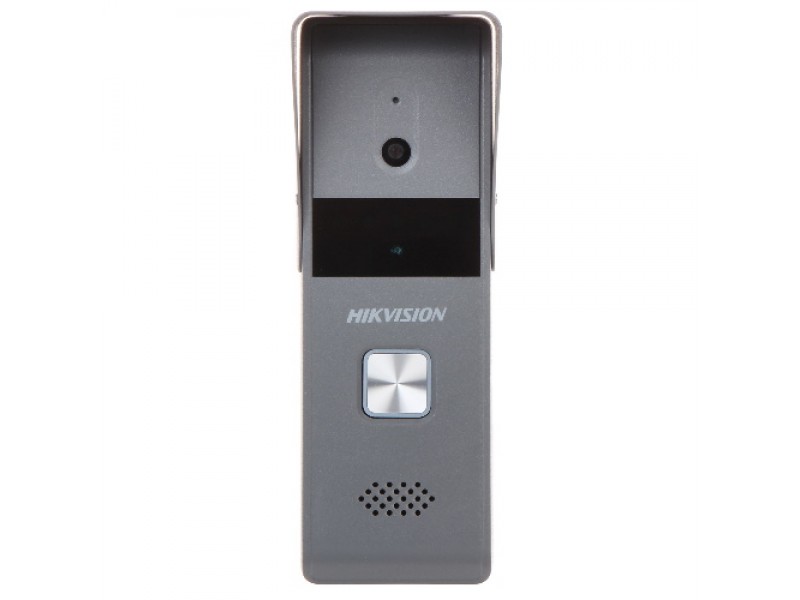

Hikvision DS-KB2421-IM

.

Video Parameters
Camera1/4" CMOS
Resolution720 × 576
Video Frame RatePAL: 25 fps

Audio Parameters
Audio InputBuilt-in Omnidirectional Microphone
Audio OutputBuilt-in Loudspeaker
Audio QualityNoise Suppression and Echo Cancellation

Device Interfaces
Four-Wire Interface1 Four-Wire Interface (1-ch Video Input, 1-ch Audio,Input/Output, 1-ch Power Supply, 1-ch Grounding)
I/O Output1 Relay Output

General
Power Supply12 VDC
Power ConsumptionMax. 5W
Working Temperature‘-30°C to 70°C (-22°F to 158°F)
Working Humidity10% to 90%
Dimensions (L X W X H)145 mm × 49.2 mm × 26.45 mm (5.7" × 1.9" × 1.0")
MaterialZinc Alloy

Display Parameters
Display Screen7-Inch Colorful TFT LCD
Display Resolution800 × 480
Operation MethodPhysical Button

Device Interfaces
Four-Wire Interface1 Four-Wire Interface (1-ch Video Input, 1-ch Audio,Input/Output, 1-ch Power Supply, 1-ch Grounding)
I/O Output1 Relay Output
